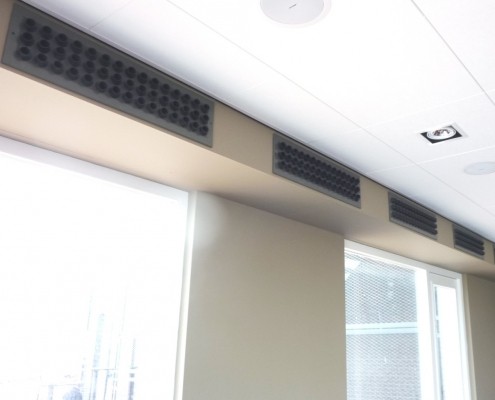

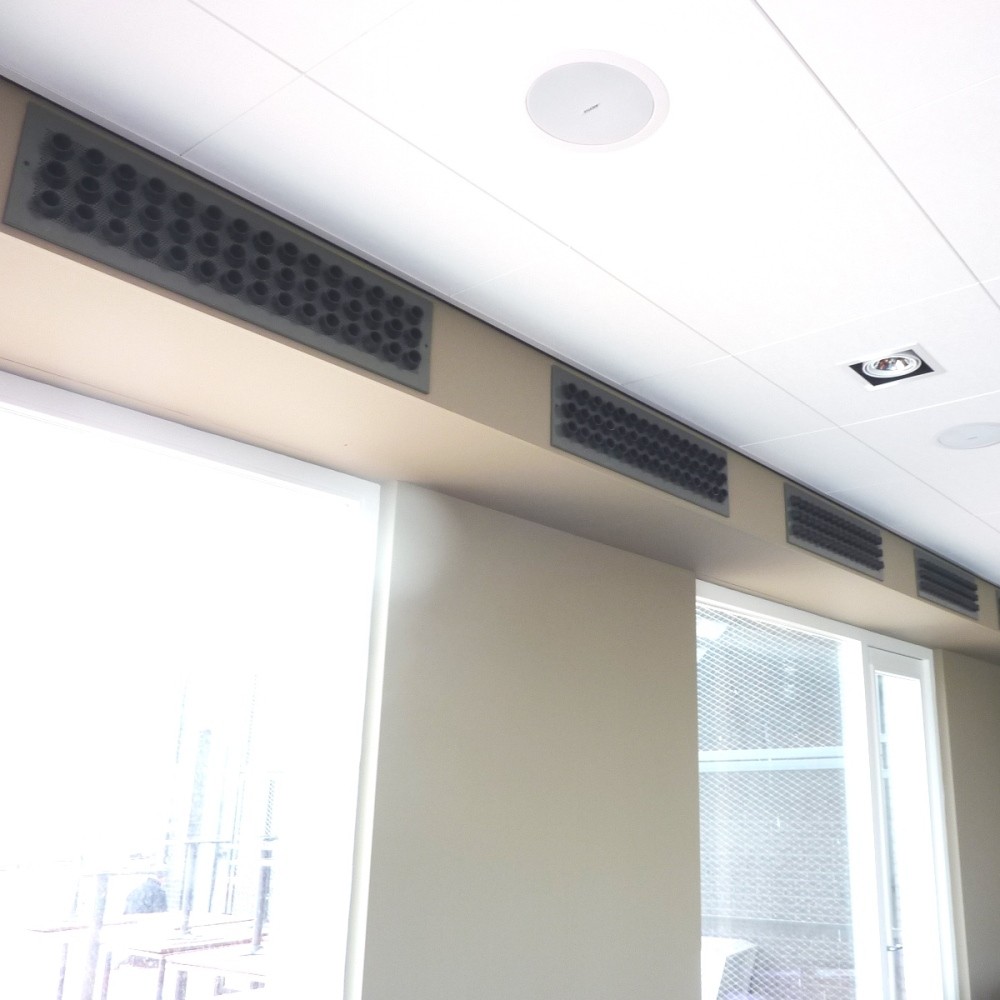

Smitsair’s SWR wall and duct diffuser is a versatile and powerful solution for the supply of cooled and heated air in various environments. This diffuser is designed with a high capacity, making it ideal for use in offices, homes, shops, swimming pools and sports facilities. With the SWR series, Smitsair offers installers an efficient system that contributes to an optimal indoor climate.

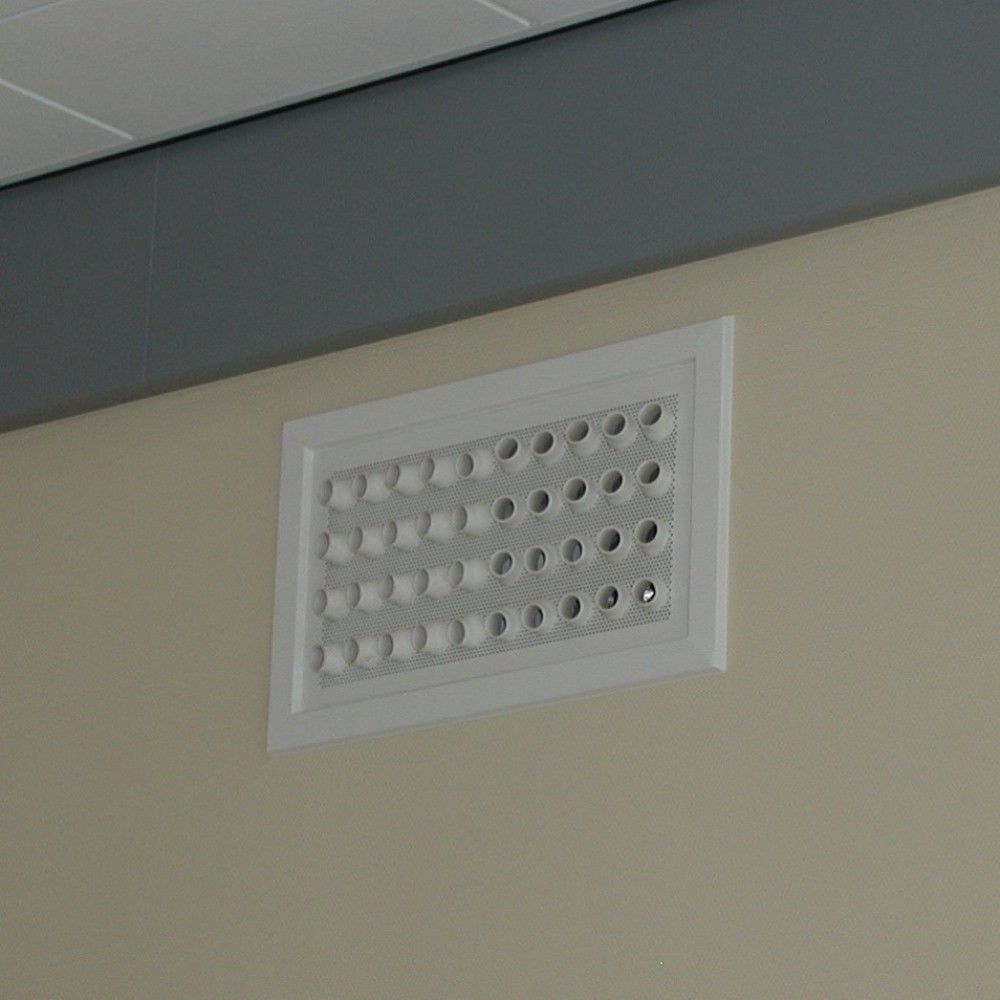

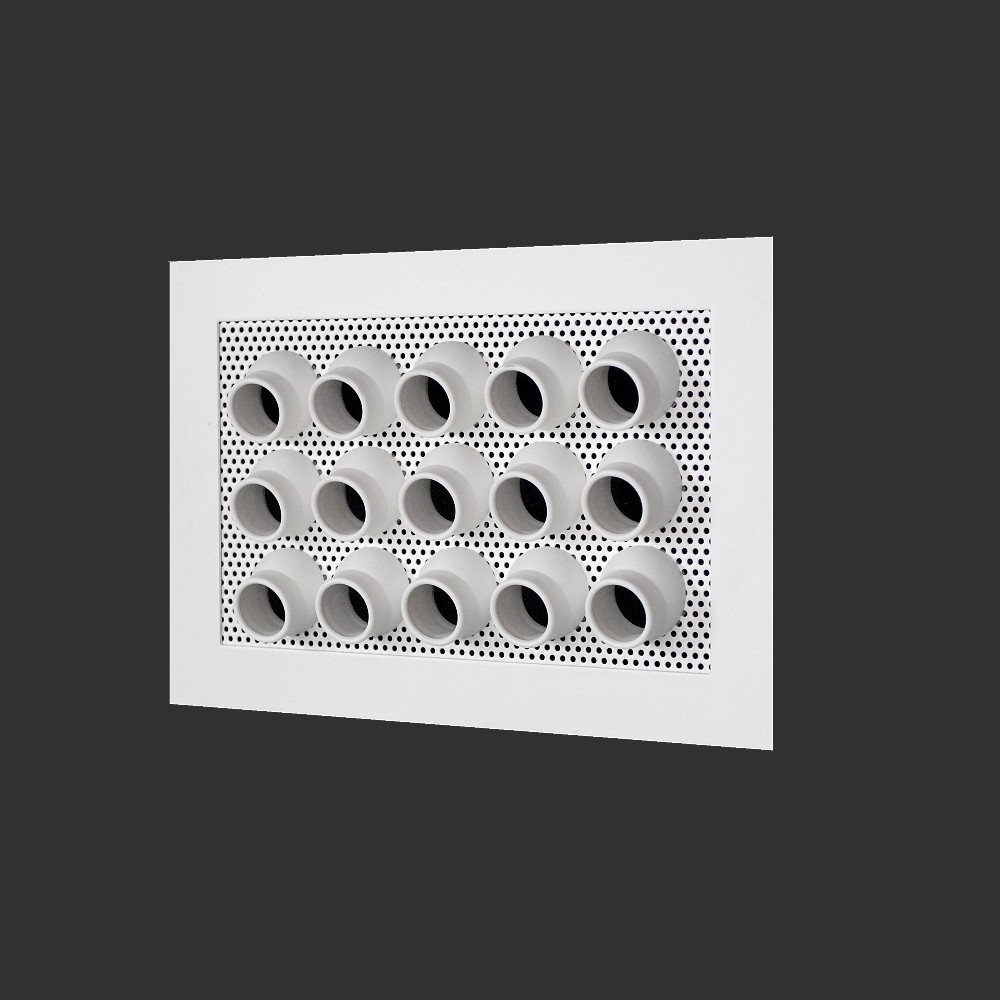

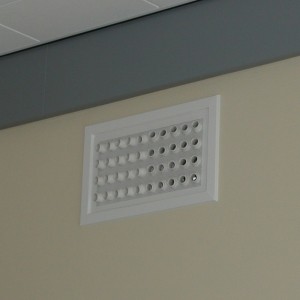

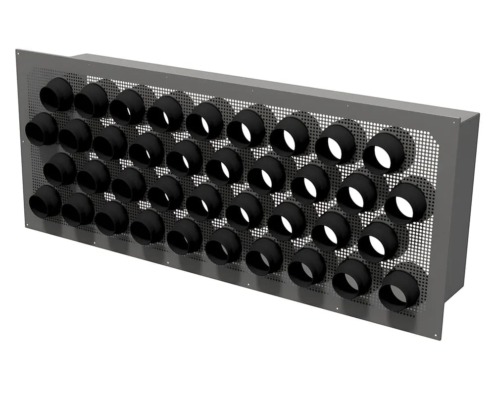

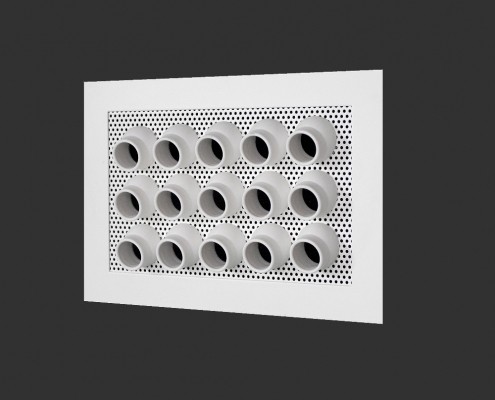

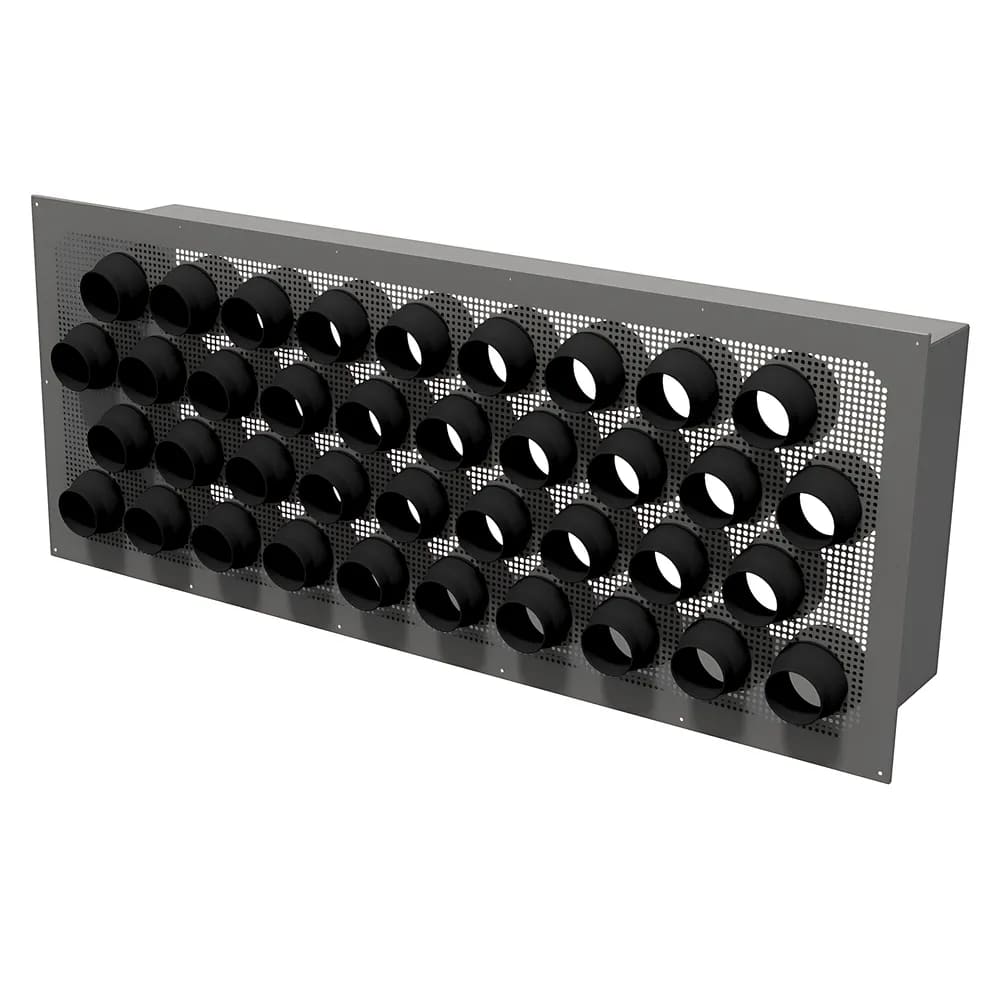

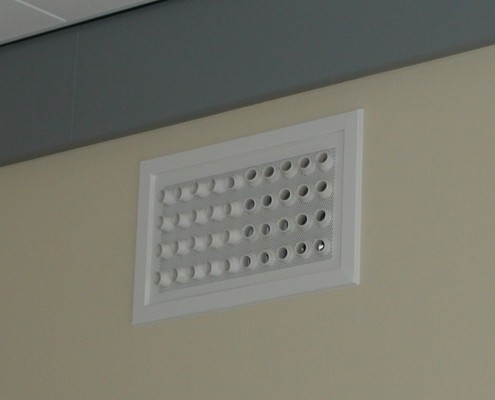

The wall grille consists of a flat grille plate with induction grille and is equipped with 1 or more rows of inducing plastic Jets type SJG3.
Can be mounted directly on a wall, cove or rectangular duct or adapted for mounting on round ducts with optional connection boxes SWR-BR/SWR-BRK.
Smitsair’s wall and duct grilles are distinguished by their efficient and versatile features. Thanks to their innovative design, the grilles have the following features:
- few grids required
- very favourable acoustic properties
- small to medium-sized air throw
- both cooling and heating possible with the same diffuser
- large temperature range
- vertical and horizontal temperature difference in the room minimal
- air velocities in the occupied zone within the applicable comfort standards
- attractive design
Smitsair JET Systems offers tailor-made wall and duct grilles, designed to fit seamlessly with the varying requirements of different projects and specific needs. Below are the different types of line diffusers:
- SWR wall grille for direct wall mounting with jets, type SJ(G)3
- SWR-A wall grille with Jets type SJ(G)3 with duct connection piece for mounting on ductwork behind wall
- SWR-AK wall grille with Jets type SJ(G)3 with duct connection piece and manual control damper for mounting on ductwork behind wall
- SWR-BR grille with plenum box for direct mounting on round ducts
- SWR-BRK duct grille with plenum box and manual damper for direct mounting on round ducts
