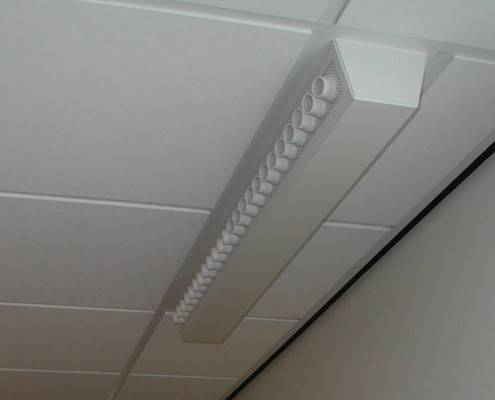

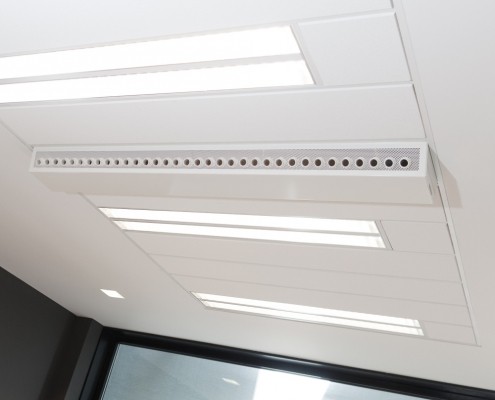

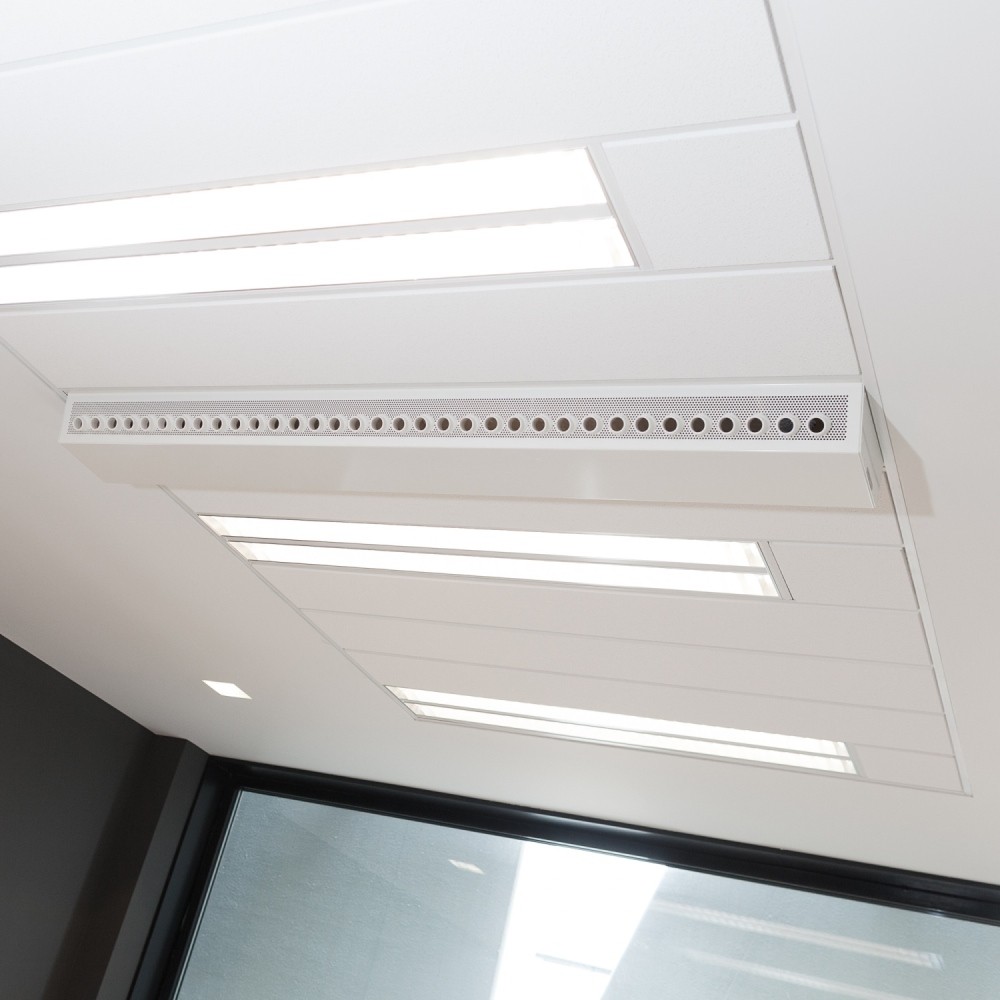

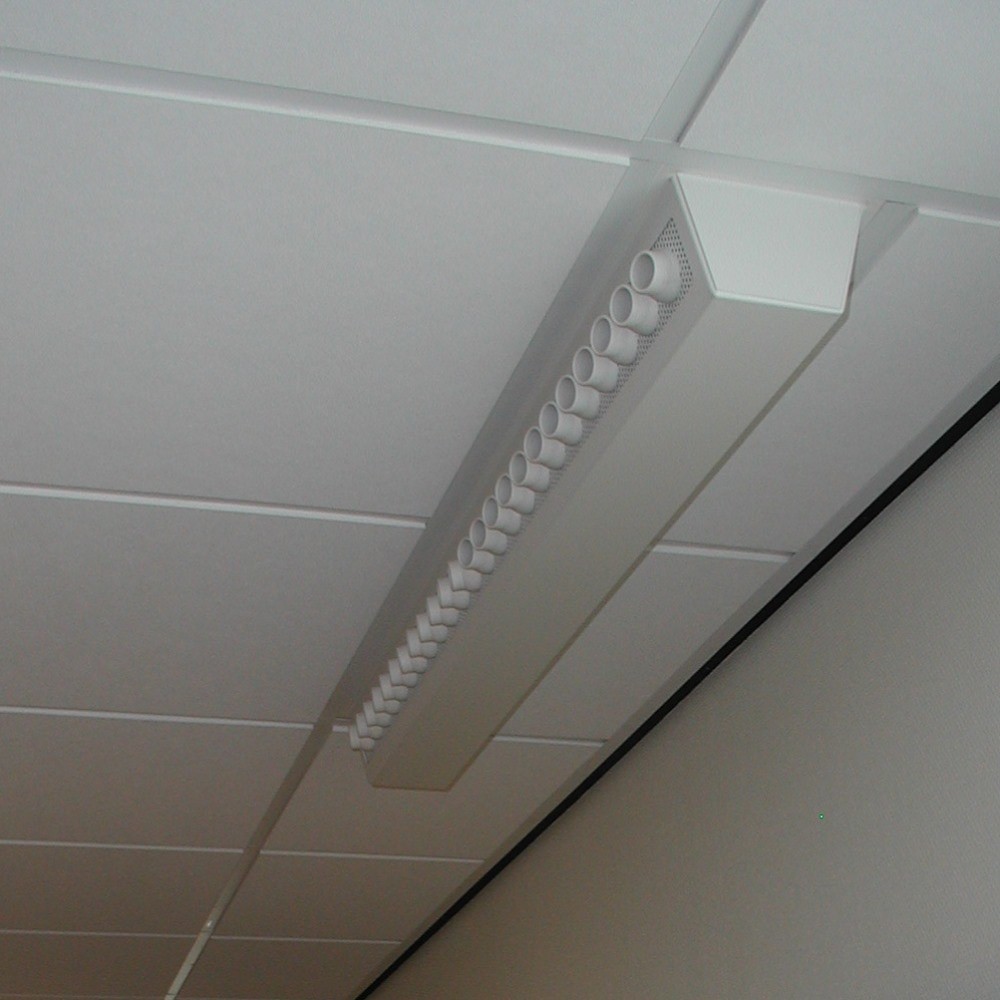

At Smitsair, we offer a versatile range of diffusers designed for efficient and directional air supply. Our STR diffusers are specially designed to effectively supply cooled and heated air with a large temperature difference compared to the room temperature. These diffusers are particularly suitable for environments where high comfort levels and constant air quality are required, such as offices, shops, laboratories, computer rooms and kitchens.
The supply air section is equipped with single- or double-sided (E/D) induction grilles fitted with inducing plastic Jets type SJG3.
Smitsair JET Systems trough grilles are distinguished by their efficient and versatile features. Thanks to their innovative design, the diffusers have the following features:
- few diffusers required in the ceiling
- very favourable acoustic properties
- small to medium-sized air throw
- both cooling and heating possible with the same diffuser
- large temperature range
- vertical and horizontal temperature difference in the room minimal
- air velocities in the occupied zone within the applicable comfort standards
- attractive design

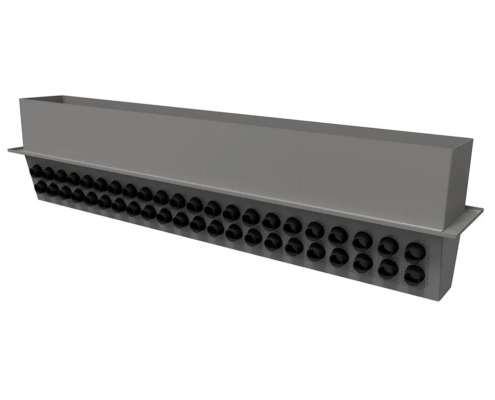

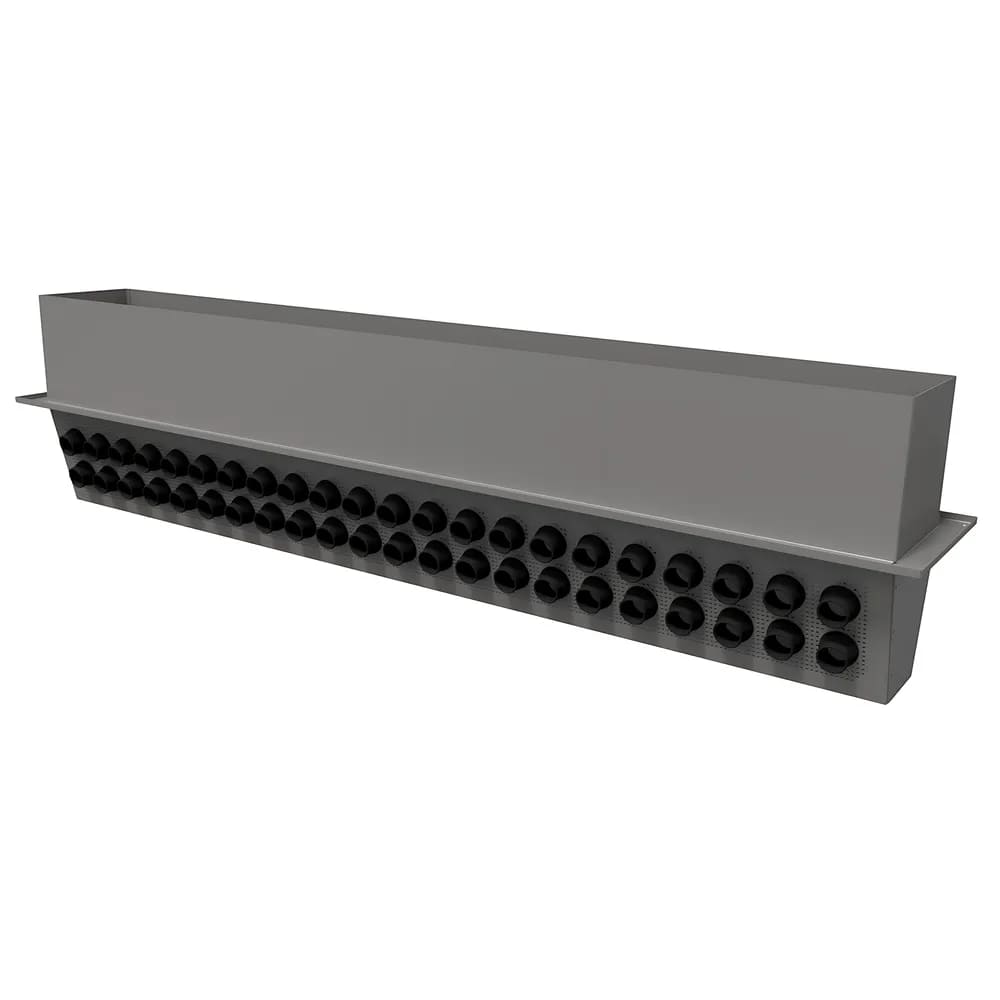

Smitsair JET Systems offers customised line diffusers designed to seamlessly match the changing demands of different projects and specific needs. Below are the different types of line diffusers:
- STR(E) 21.2 single-sided supply air diffuser with Jets type SJ(G)3, suitable for suspended ceiling L=600 mm
- STR(E) 47.2 single-sided supply air diffuser with Jets type SJ(G)3, suitable for suspended ceiling L=1,200 mm
- STR(D) 42.2 double-sided supply air diffuser with jets type SJ(G)3, suitable for suspended ceiling L=600 mm
- STR(D) 94.2 double-sided supply air diffuser with jets type SJ(G)3, suitable for suspended ceiling L=1,200 mm
